Embedding and Interacting with Tableau Visualizations Inside Your Ext JS Apps

January 25, 2017 133 Views
Show

If you’re looking to build your next web application with all the goodness of Tableau and a rich user interface to drive actions, then this article is for you. By embedding Tableau inside Sencha Ext JS applications, you can deliver the best BI Analytics experience to your users and offer seamless interaction with two-way data exchange.

Ext JS component APIs make it incredibly simple to embed Tableau visualizations and exchange data between Tableau and other applications. The Ext JS component lifecycle hooks ensure that Tableau visualizations are a seamless part of your web application’s workflow. Furthermore, with strong data APIs in place, you can perform all data translation or transformation required to structure Tableau data into the format most appropriate for the application

You can use UI Components t to create embedded and interactive table visualizations in your js apps because it has a chart feature that visually represents data with a wide range of dynamic and static charts such as line, bar, and pie charts.

In this article, we’ll demonstrate how to build an Ext JS application with embedded Tableau visualizations and link them with your application logic. You’ll learn how to:

  • Apply filters to Tableau visualizations embedded within Ext JS applications
  • Read Tableau’s native filters and drive application behavior
  • Read Tableau’s visual data selections (e.g. a bar in a Tableau visualization) and use it to drive application behavior

Overview

In this article, we’ll be creating an Ext JS application containing a Tableau visual and a Sencha Pie Chart, as shown below:

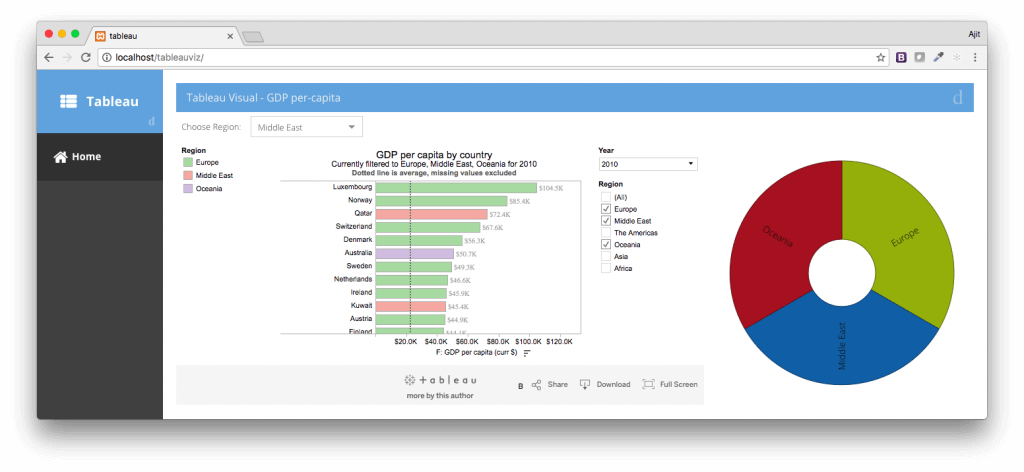

Ext JS Application Containing a Tableau Visual and a Sencha Pie Chart

We’ll be initializing the Tableau visual based on the Choose Region combo-box selection. Pies in the Pie chart will be rendered based on the regions selected inside the Tableau visual. We’ll also handle the event when a particular bar/mark is selected on the Tableau visual.

Getting Started

Before we begin, there are few things that you’ll need:

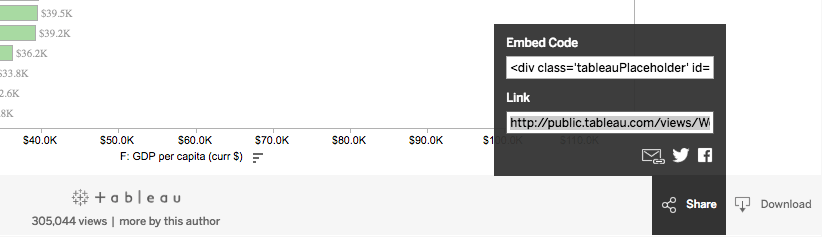

The publicly available Tableau visuals can be opened directly in a browser. To find the Tableau visual URL that can be used in an Ext JS application, click on the Share button at the bottom of every visual and copy the Link field value, as shown in the image below:

Tableau Visuals

In this article, we’ll be using the following visual:
http://public.tableau.com/views/WorldIndicators/GDPpercapita

Now, that we’ve identified the Tableau visual, we’ll start with creating an Ext JS project.

Creating the Application

Create an Ext JS application by running the following command inside a folder of your choice:

sencha -sdk /path/to/sdk generate app -ext -classic tableau tableau-extjs

This command generates a sample application inside the tableau-extjs folder with tableau as the application name.

Next, go inside the tableau-extjs folder and run the following command, which starts a web server to access the application and also starts watching for changes being made to the project:

sencha app watch

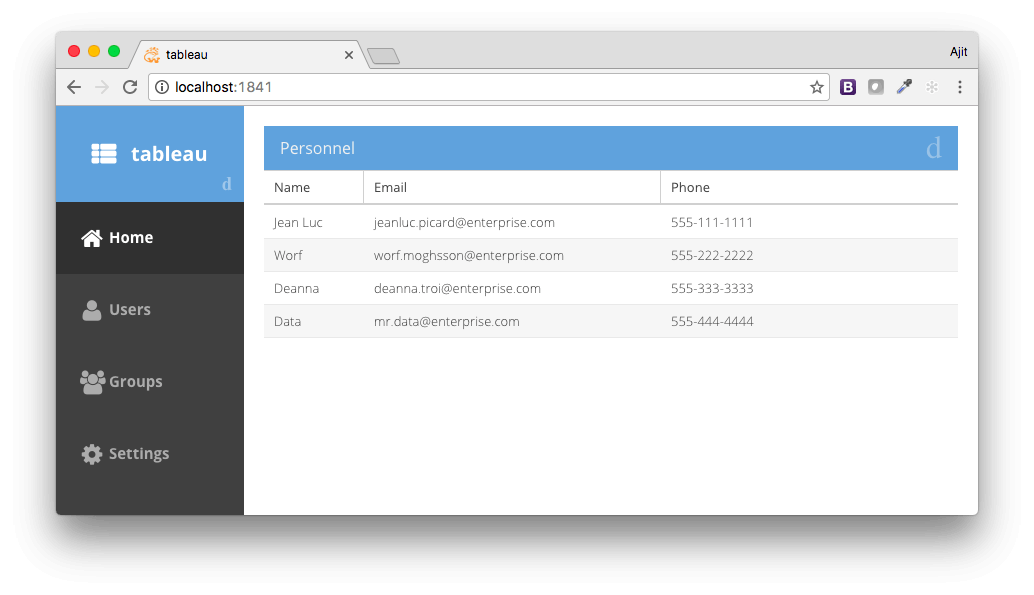

Access http://localhost:1841/ URL in a browser to see the generated sample application, as shown below:

View the Sample Ext JS Application

We’ll now make changes to this app to replace the Personnel grid with a Tableau visual and other components that we need for the application.

Adding a Tableau Visual to an Ext JS Application

Edit index.html and add Tableau JS library:


Next, add charts package to app.json:

    "requires": [
        "font-awesome",
        "charts"
    ],

Now, add the following Tableau component class to view/main/tableau folder:

Ext.define('tableau.view.tableau.Tableau', {
    extend: 'Ext.Component',

    xtype: 'tableauviz',

    viz: null,
    workbook: null,
    activeSheet: null,

    config: {
        regionFilterTxt: '',
        vizUrl: '',
        options: {
            hideTabs: true,
            hideToolbar: true
        }
    },

    onBoxReady: function(width, height) {
        this.setOptions(Ext.apply({
            width: width,
            height: height
        }, this.getOptions()));
    },

    onResize: function(width, height) {
        if (this.activeSheet) {
            this.viz.setFrameSize(width, height);
        }
    },

    afterRender: function() {
        var me = this;

        me.callParent();

        var placeholderDiv = me.getEl().dom;
        var url = this.getVizUrl();

        var options = Ext.apply({
            onFirstInteractive: function () {
                me.workbook = me.viz.getWorkbook();
                me.activeSheet = me.workbook.getActiveSheet();
            }
        }, this.getOptions());

        me.viz = new tableauSoftware.Viz(placeholderDiv,
                  url, options);
    }
});

Next, add the following class to view/main folder:

Ext.define('tableau.view.main.TableauNExt', {
    extend: 'Ext.Panel',

    requires: ['Ext.chart.series.Pie',
              'tableau.view.tableau.Tableau'],

    xtype: 'tableaunext',

    title: 'Tableau Visual - GDP per-capita',

    items: [{
        xtype : 'toolbar',
        docked: 'top',
        items: [{
            xtype: 'combobox',
            fieldLabel: 'Choose Region',
            triggerAction: 'all',
            store : {
                fields: ['abbr', 'name'],
                data : [
                    {"abbr":"", "name":"All"},
                    {"abbr":"Europe", "name":"Europe"},
                    {"abbr":"Middle East", "name":"Middle East"},
                    {"abbr":"The Americas", "name":"The Americas"},
                    {"abbr":"Oceania", "name":"Oceania"},
                    {"abbr":"Asia", "name":"Asia"},
                    {"abbr":"Africa", "name":"Africa"}
                ]
            },
            value: 'All',
            queryMode: 'local',
            displayField: 'name',
            valueField: 'abbr'
        }]
    }, {
        xtype: 'container',
        layout: 'hbox',
        items: [{
            xtype: 'tableauviz',
            flex: 1,
            vizUrl: "http://public.tableausoftware.com/views/WorldIndicators/GDPpercapita"
        }, {
           xtype: 'polar',
           width: 400,
           height: 400,
           insetPadding: 10,
           innerPadding: 10,
           interactions: ['rotate', 'itemhighlight'],
           store: {
               fields: ['name', 'data1'],
               data: [{
                   name: 'Europe',
                   data1: 14
               }]
           },
           series: {
               type: 'pie',
               highlight: true,
               angleField: 'data1',
               label: {
                   field: 'name',
                   display: 'rotate'
               },
               donut: 30
           }
        }]
    }]
});

Now, edit Main.js and set the items to:

    items: [{
        title: 'Home',
        iconCls: 'fa-home',
        items: [{
            xtype: ‘tableaunext’
        }]
    }]

Then, add tableau.view.main.TableauNExt to the requires array of Main.js.

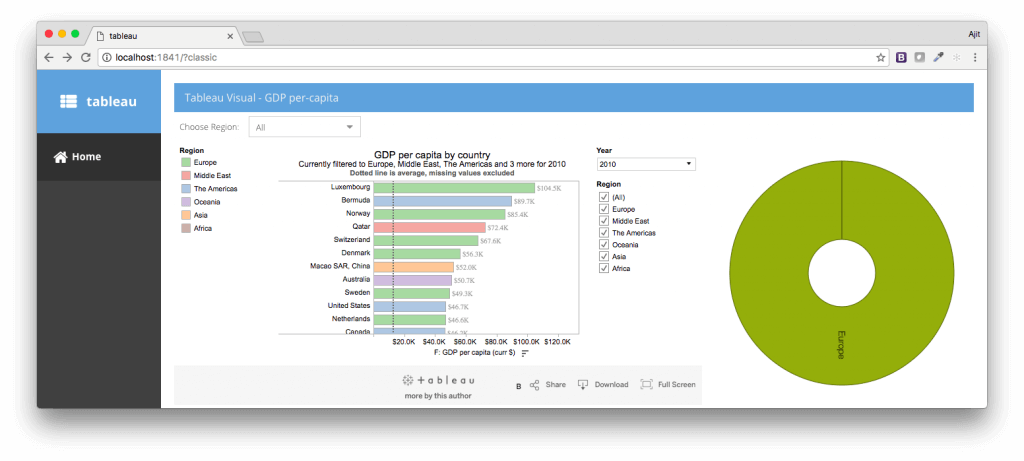

Now, run sencha app watch and access the application in the browser. You’ll see the following output:

Adding a Tableau Visual to an Ext JS Application

The Choose Region selection has no effect and neither does the Region selection inside the Tableau visual.

Applying Filters to Tableau Visualization

Now, we can read the Choose Region combo-box selection and use that as a region filter to initialize the Tableau visual. To do this, we’ll:

Read the selected region when the combo-box selection changes.

Modify the afterRender method to register handler for change event on the combo-box, as shown below:

afterRender: function() {
    this.callParent();

    var cbx = this.down('combobox');
    cbx.on('change', this.filterSingleValue, this);
    …

Add the new handler method – filterSingleValue – to the tableau.view.main.TableauNExt class:

filterSingleValue: function(cmp, newVal) {
    this.down('tableauviz').setRegionFilterTxt(newVal);
},

The handler method calls the setter method regionFilterTxt config to set the region on the Tableau component. In Ext JS, to respond to the set operation on a config, we have to apply and update the version of the hook methods available. In this case, we’ll be using the update hook method to apply the region filter on the Tableau visual.

Now, add the following update method to the tableau.view.tableau.Tableau class:

updateRegionFilterTxt: function(newVal, oldVal) {
    if (this.activeSheet) {
        this.activeSheet.applyFilterAsync(
            "Region",
            newVal,
            (newVal !== "") ?tableauSoftware.FilterUpdateType.REPLACE : tableauSoftware.FilterUpdateType.ALL);
    }
}

The method checks newVal when it’s passed to it and applies it as a region filter if it’s not an empty string (i.e. All was selected). Otherwise, sets the ALL filter.

Next, add the following line of code to the onFirstInteractive method, so the combo-box selection is applied when the visual renders for the first time:

me.updateRegionFilterTxt(me.getRegionFilterTxt());

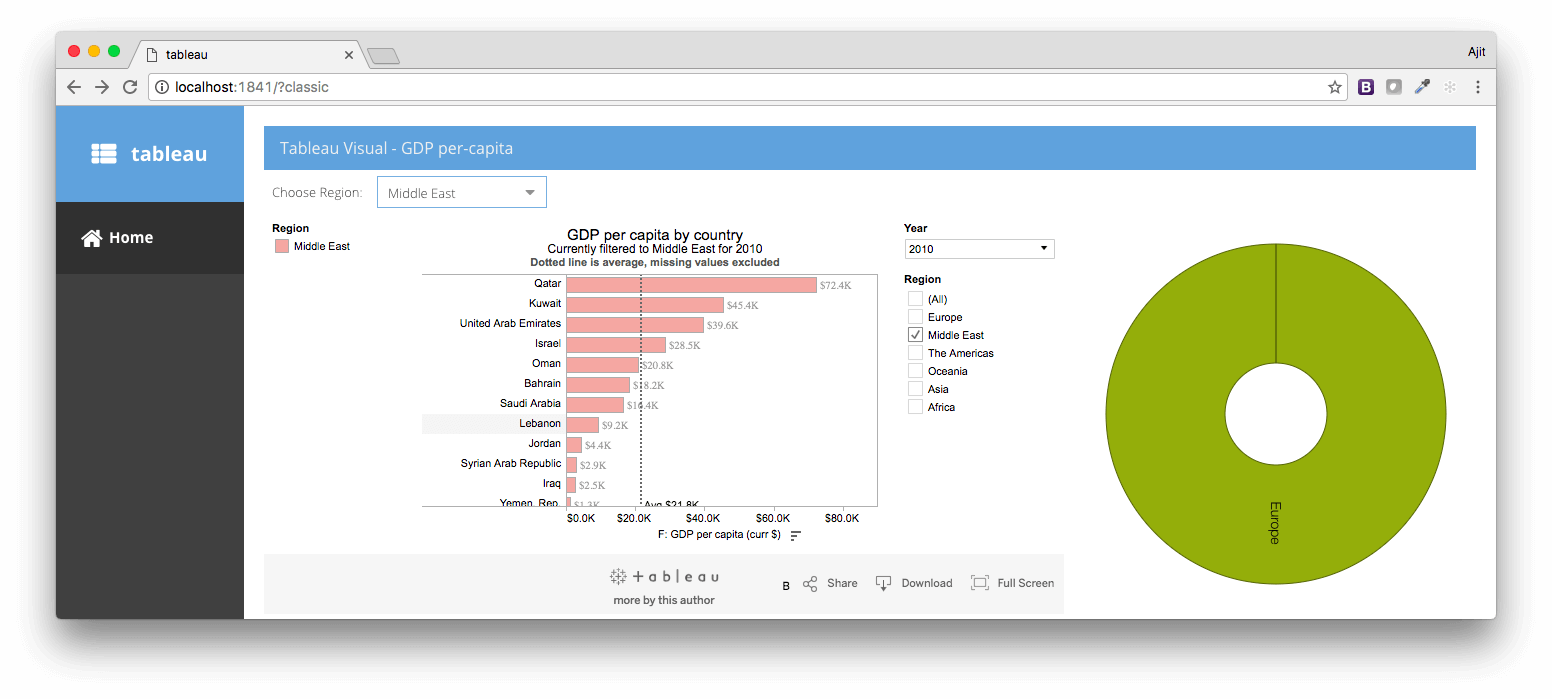

Save the changes and reload the application in the browser. You’ll see that the Tableau visual responds to the combo-box selection, as shown below:

Applying Filters to Tableau Visualization

Reading Tableau’s Native Filters

The Tableau viz class fires the filterchange event when a user changes the visual filters. The filter data is made available to the handler through the event object.

To register the filterchange handler, edit the tableau.view.tableau.Tableau class afterRender method and add the following code after the visualization has been instantiated:

me.viz.addEventListener('filterchange', function(e) {
    e.getFilterAsync().then(function(filter) {
        me.fireEvent('filterchanged', me, filter.getAppliedValues());

    });
});

The handler is firing a custom event and passing the filters array to the listener. We’ll handle this custom event in our application and do something interesting.

Next, handle the filterchanged event in the afterRender method of tableau.view.main.TableauNExt class:

var viz = this.down('tableauviz');
var me = this;

viz.on('filterchanged', function(cmp, vizFilters) {
    var store = me.down('polar').getStore();
    store.removeAll(true);

    var l = vizFilters.length;
    var recs = [];
    for (var i = 0; i < l; i++) {
        var name = vizFilters.value;

        recs.push({
            name: name,
            data1: 100/l
        });
    }
    store.add(recs);
});

The handler is reading all the applied filters and using them to prepare records for the Pie Chart, so the pie can be created for the applied regions.

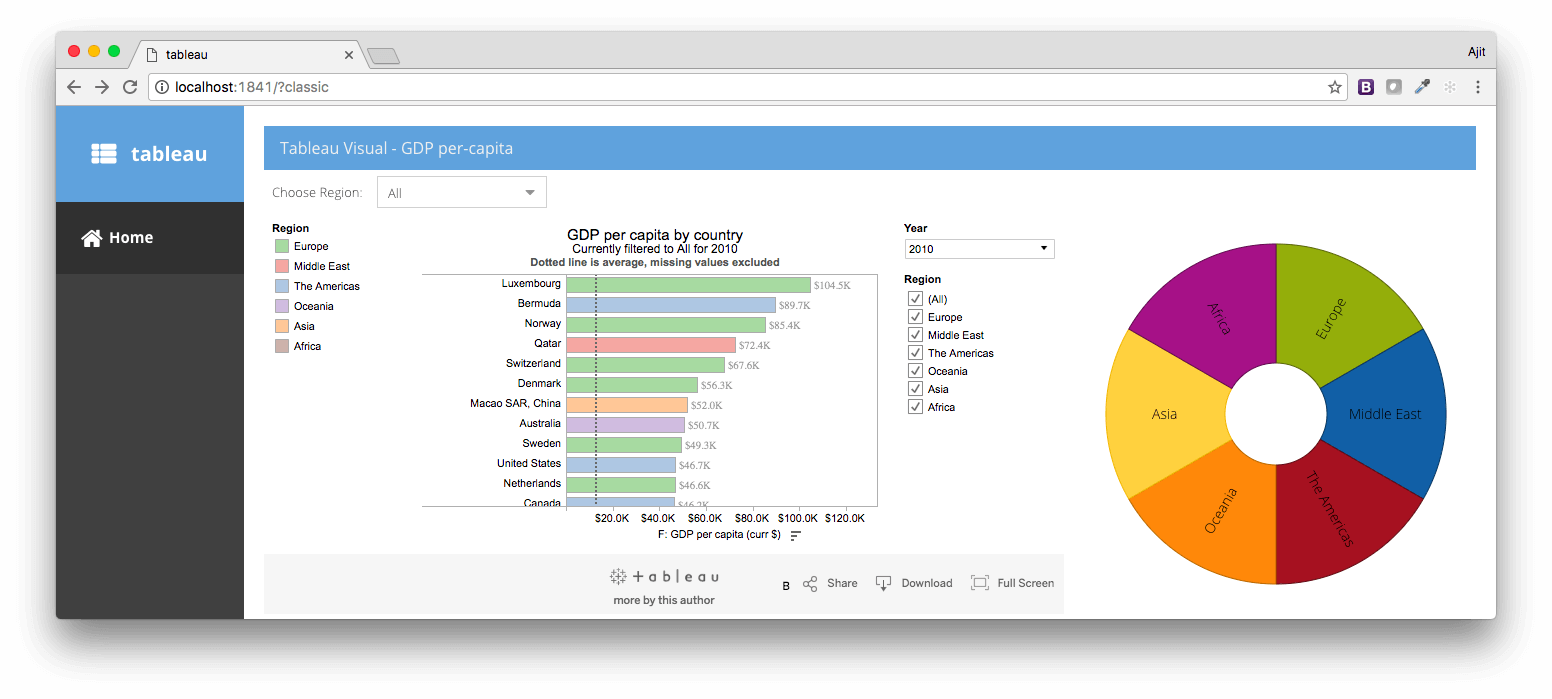

Reload the application and you’ll see the Tableau visual filters drive the pie chart, as shown below:

Reading Tableau’s Native Filters

Reading Tableau’s Visual Data Selections

Tableau fires the marksselection event when one or more marks on a visual have been selected.

Modify the afterRender method of the tableau.view.tableau.Tableau class to register the handler:

me.viz.addEventListener('marksselection', function(e) {
    e.getMarksAsync().then(function(marks) {
      var retData = [];
      for (var markIndex = 0; markIndex < marks.length; markIndex++) {
        var pairs = marks[markIndex].getPairs();

        retData[markIndex] = [];

        for (var pairIndex = 0; pairIndex < pairs.length; pairIndex++) {
          var pair = pairs[pairIndex];
          retData[markIndex].push({
            fieldName: pair.fieldName,
            formattedValue: pair.formattedValue});
        }
      }
      me.fireEvent('marksselected', me, retData);
    });
});

The handler prepares a two-dimensional array for the selected marks and passes it to the listener of the custom event – marksselected – which can be handled in the other part of the application.

Next, handle the marksselected event in the tableau.view.main.TableauNExt class:

viz.on('marksselected', function(cmp, marks) {
    console.log('Selected marks: ', marks);
});

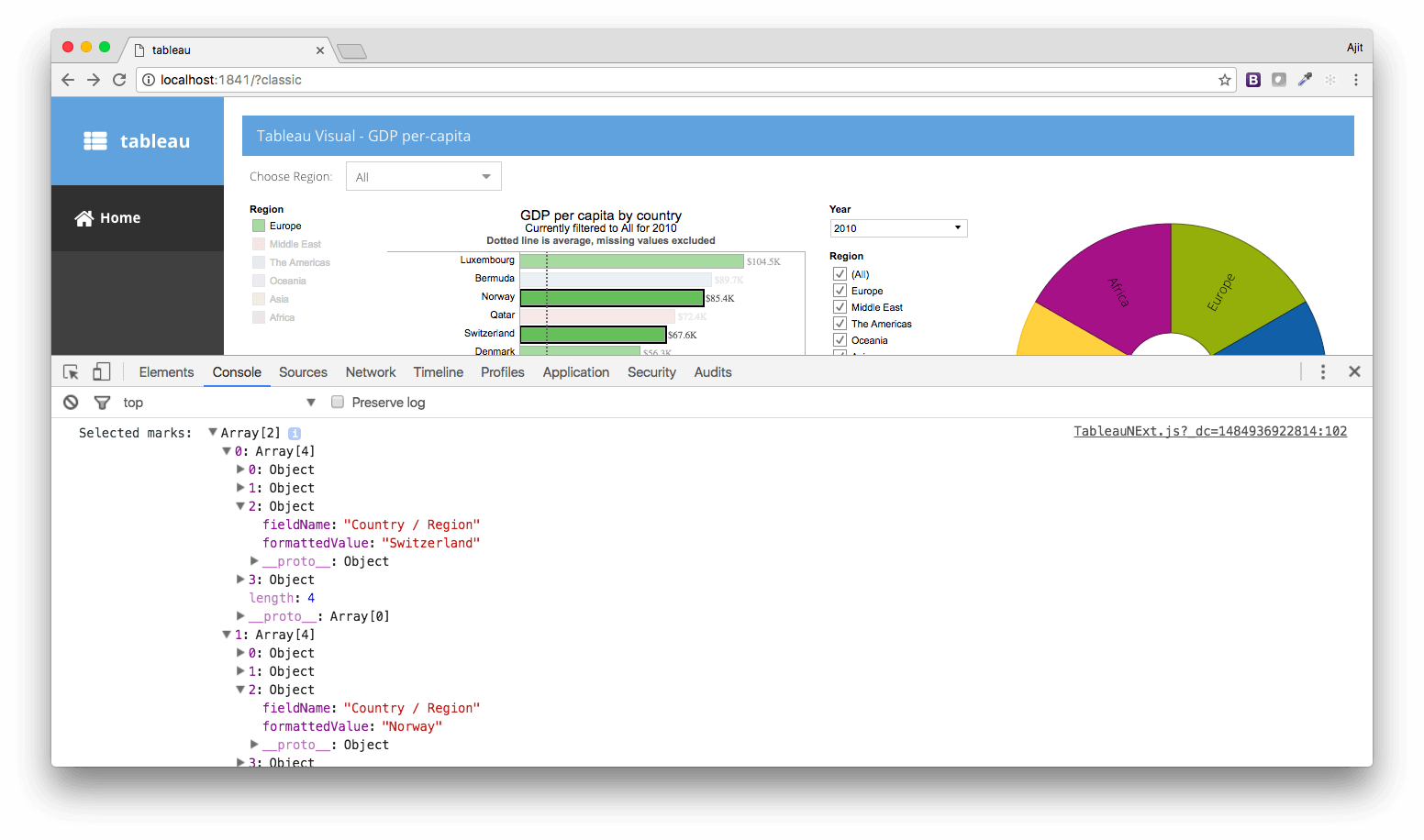

Reload the application, select a few markers, and you’ll be able to see the handler logging them in the console, as shown below:

Reading Tableau’s Visual Data Selections

Summary

There’s more to Tableau JavaScript APIs and the use cases around it. In this article, we looked at how you can render a Tableau visual inside an Ext JS application and build two-way data flow between a Tableau visual and Ext JS components. This makes it easier to bring any of your Tableau visuals to Ext JS based customer facing applications and link information with actions.
