Ext JS from Scratch – Part 1

November 17, 2017 417 Views
Show

“Ext JS From Scratch” is the first part of a new blog series. Why is this series being launched? We’ve received a lot of feedback from customers about the learning curve time for Ext JS, and one of the challenges I believe people face in learning Ext JS is that they’ve never learned the fundamentals, or how Ext JS really works – they just learn a pattern, and they’re off.

In this series, I’ll explain why and how Ext JS works the way it does. I’ll do this by providing ExtJS Examples For Beginners like this, and over the course of this series, I’ll work my way up to a fully-featured Ext JS application; essentially, I’ll be starting from scratch.’

For reference, the source code for this series will be available at:
https://github.com/mgusmano/ExtJSFromScratch

So, without further ado, let’s get started with ExtJS from the scratch!

The best place to start is with the simplest of HTML5 web applications. An HTML5 web application is data-oriented and is typically discussed in 3 parts:

  • HTML – the ‘tags’ that are used to tell the web browser what to draw.
  • CSS – Cascading Style Sheets; instructions to tell the browser how to style the HTML tags (fonts, colors, etc).
  • JavaScript – the programming language used to manipulate HTML when it is actually in the browser (typically called the DOM, or Document object Model).

Here is the simplest of HTML5 applications in 1 file, named ‘index.html’. Note that the indenting and spacing are optional, but good use of each makes things a lot more readable.

Basic Web Page:

Users

NameEmail AddressPhone Number

Lisa [email protected] 555-111-1224
Bart [email protected] 555-111-1224
Homer [email protected] 555-111-1224
Marge [email protected] 555-111-1224



Let’s dissect this file – it is broken into a set of starting and ending HTML “tags”:

  • Line 1 indicates that this file is an HTML5 file
  • Lines 2 and 35 are the beginning and ending HTML tags – inside the HTML tags are the head and body tags
  • Lines 3 and 8 are the head tags – it contains references to 3 files (which are currently empty) that will hold CSS and JavaScript we will soon write
  • Lines 9 and 34 is the set of body tags – the contents of the body tags can have other tags to tell the browser what to display, or JavaScript code can ‘inject’ more tags programmatically (we will see that soon)

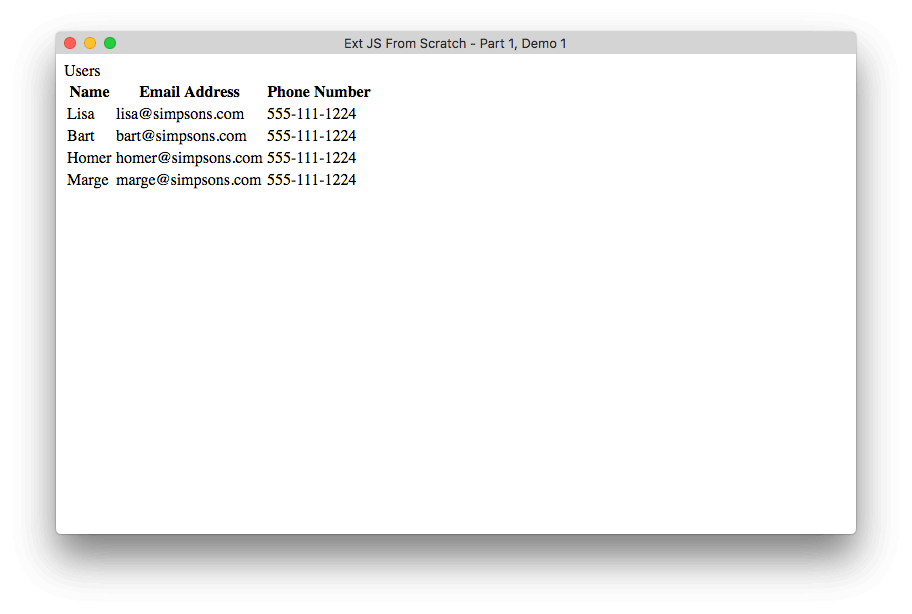

Opening this file in a browser produces the following page:

Static web page

Static web page

This page represents a grid, with the top line representing the grid’s title, the second line representing column headers, and the remaining lines representing grid data. This display has a number of noteworthy features. First and foremost, there is no “theme” to this page; it is simply black text on a white background. Second, the page is static, with the data hard-coded. Data in our web applications is typically dynamic and based on data calls to a server. Let’s take a look at both of these issues.

How do we use CSS to create our theme?

CSS is used to add the ‘style’ or ‘theme’ to our application. I have added the following CSS to the theme.css file that is referenced by our HTML file and refreshed the browser.

.x-viewport {
margin: 0; border: 5px solid green;
width: 100%; height: 100%; right: 0; top: 0;
overflow: hidden;
position: absolute; box-sizing: border-box;
}
.x-grid {
font-family: Roboto, sans-serif;
font-weight: 400;font-size: 18px; width: 100%;
}
.gridTitle {
position: absolute;
top: 0;right: 0;bottom: 0;left: 0;
display: flex;
align-items: center;
justify-content: center;
background: #2196f3; color: #FFFFFF;
height: 48px;
}
.blueTable {
margin-top: 48px;
border-collapse: collapse;
font-weight: 100;font-size: 14px; width: 100%;
}
.blueTable td, .blueTable th {
border: 1px solid #E6E6E6; padding: 10px;
}
.blueTable th {
font-weight: 600;text-align: left;
}

The result is seen here:

Static web page with CSS applied

Static web page with CSS applied

Creating CSS that works well and works across browsers is not easy. We will see later that Ext JS comes with a complete set of ‘themes’ – and those themes can also be easily modified.

How do we bring the page to life with JavaScript?

Now let’s tackle the issues of providing for interaction on a page, things like ‘events’ (like a click on a row), and the use of static data tags in the grid. In fact, any HTML tags in the body of the page are static tags. Fortunately, with JavaScript, any part of the page can be manipulated and a dynamically drawn page can be created. This is something that we want a framework to do. So, let’s take a look at this in 2 steps.

Step 1: In ‘Ext-lite.js’ I have included some ‘framework’ code – defining this as ‘framework’ code means that this code will be the same for each application, containing helper functions, and anything else not specific to my application.

For this first iteration, I have included code that will add click event handlers to each row of a table (addRowHandlers). I have also added code that will wait for the DOM content to be loaded (meaning the page is ready for my code) and will call a ‘launch’ function – it is in this ‘launch’ function that I can write my application code.

document.addEventListener(“DOMContentLoaded”, function(event) {
launch();
});

function addRowHandlers(table, fn) {
var table = document.getElementById(table);
var rows = table.getElementsByTagName(“tr”);
for (var i = 1; i < rows.length; i++) {
var row = table.rows;
var cols = row.getElementsByTagName(“td”);
var o = {};
for (var j=0;j<cols.length;j++) {
o[‘c’+j]=cols[j].innerHTML;
}
var record=[];
record[0] = {};
record[0].data = o;
row.onclick = function() {return fn(row,record)};
}
}

Step 2: In the ‘launch’ function of the ‘app.js’ file, I have included code that is needed to call the addRowHandlers function. The key thing to understand here is that I only write the code in ‘app.js’. All of the ‘framework’ code in ‘Ext-lite.js’ is provided to me and allows me to focus on my application, not the inner workings of the framework.

function launch() {
console.log(‘page is loaded’);
addRowHandlers(“ext-table1”, onSelect);
};

function onSelect(sender, record) {
var r = record[0].data;
var text = r.c0+’ – ‘+r.c1+’ – ‘+r.c2;
alert(text);
};

Refreshing the page and clicking on the row for Marge produces the following output:

addRowHandlers function - results

addRowHandlers function – results

Finally, let’s tackle the issue of the static tags in the body. As I mentioned, with JavaScript you can completely construct the HTML on the page dynamically.

If you take a look at the structure of the static HTML, you essentially see a logical structure similar to this:



the viewport is common to each application, and the grid itself has just a few dynamic items:

  • xtype (the type of an object, referred to as xtype in Ext JS)
  • title (what goes in the header panel
  • columns (description of all columns in the grid
  • data (the data to populate the grid)
  • listeners (the set of events the object is listening to)

What if we could remove all of the static HTML in the page (allowing the framework to create it dynamically with JavaScript) and just create a logical ‘grid’ in the launch function as a child of the viewport, with a definition of xtype, title, columns, data and events? Say something like this:

{
xtype: ‘grid’,
title: ‘Users’,
columns: [
{ name: ‘Name’ },
{ name: ‘Email’ },
{ name: ‘Phone number’ }
],
data: data,
listeners: {
select: onSelect
}
}



First, we add a few functions to ‘Ext-lite.js’ to handle the dynamic creation of the HTML – to see the code that was added, go to:

https://github.com/mgusmano/ExtJSFromScratch/blob/master/Part01/03/Ext-lite.js

You will notice that there is quite a bit of code in this file – this code represents the type of code that is in the Ext JS framework, and will be code that you will NOT have to write – the framework does all of this for you! We only have to write code in the ‘launch’ function of ‘app.js’ – you will see that below.

The ‘index.html’ file now looks like this (notice that now there are NO tags in the body):

Then, in ‘app.js’, we modify the ‘launch’ function so that it looks like this:

function launch() {
Viewport.add({
xtype: ‘grid’,
title: ‘Users’,
columns: [
{text: ‘Name’, width: 100, dataIndex: ‘name’},
{text: ‘Email Address’, flex: 1, dataIndex: ’email’},
{text: ‘Phone Number’, width: 200, dataIndex: ‘phone’}
],
data: data,
listeners: {
select: onSelect
}
});
}

function onSelect(sender, record) {
var r = record[0].data;
var text = r.name+’ – ‘+r.email+’ – ‘+r.phone;
alert(text);
};

var data = [
{ name: ‘Lisa’, email: ‘[email protected]’, phone: ‘555-111-1224’ },
{ name: ‘Bart’, email: ‘[email protected]’, phone: ‘555-222-1234’ },
{ name: ‘Homer’, email: ‘[email protected]’, phone: ‘555-222-1244’ },
{ name: ‘Marge’, email: ‘[email protected]’, phone: ‘555-222-1254’ }
]

So now I have a way to define WHAT I want the user interface to look like and should do, not having to worry about HOW the specific HTML is constructed. I would say that makes creating a web application a lot simpler – and that’s exactly what Ext JS is!

Is it easy to use the Ext JS Framework to create our application?

So now (finally!) let’s use the Ext JS Theme and Framework libraries instead of our own libraries – to see the final files, take a look here: https://github.com/mgusmano/ExtJSFromScratch/tree/master/Part01/05

For this example, I have a copy of the Ext JS 6.5.2 framework in a folder called ‘ext-6.5.2’ – to try this, you can use your licensed version of Ext JS or get a trial of the framework at: https://www.sencha.com/products/extjs/evaluate

First, lets look at the ‘index.html’ file. Line 5 is a link to one of the Ext JS themes, the ‘Material Theme’ (modeled after the Google Material specification). Line 6 is a link to the Ext JS ‘modern’ toolkit (this example refers to the entire framework – in future blog posts (as part of this series) we will look at better ways to include the Ext JS framework in your application). The resulting ‘index.html’ page now looks like this:

The only change in the ‘app.js’ file is that we wrap the launch function in an object parameter to an Ext.application instance (we will explain the reason for that in a future blog).

Ext.application({
launch: function () {
Ext.Viewport.add({
xtype: ‘grid’,
title: ‘Users’,
columns: [
{text: ‘Name’, width: 100, dataIndex: ‘name’},
{text: ‘Email Address’, flex: 1, dataIndex: ’email’},
{text: ‘Phone Number’, width: 200, dataIndex: ‘phone’}
],
data: data,
listeners: {
select: onSelect
}
});
}
});

function onSelect(sender, record) {
var r = record[0].data;
var text = r.name+’ – ‘+r.email+’ – ‘+r.phone;
alert(text);
};

var data = [
{ name: ‘Lisa’, email: ‘[email protected]’, phone: ‘555-111-1224’ },
{ name: ‘Bart’, email: ‘[email protected]’, phone: ‘555-222-1234’ },
{ name: ‘Homer’, email: ‘[email protected]’, phone: ‘555-222-1244’ },
{ name: ‘Marge’, email: ‘[email protected]’, phone: ‘555-222-1254’ }
]

and the app now looks like this:

app.js - results

Our first Ext JS application

That’s it – you now have an actual Ext JS application! And it is much more functional than the one we were creating from scratch. The Ext JS Grid has things like sorting, big data handling, column hiding, and much more! If you are curious about all that the Ext JS Grid can do, check out our Kitchen Sink Example at: http://examples.sencha.com/extjs/6.5.1/examples/kitchensink/?modern#grids

All you need to do is modify what is in the ‘launch’ function – the Ext JS framework does the rest.

I assume you’ll want to write a much more complex application than what we wrote here. We’ll have plenty more to cover in the series, but we’ve made a lot of progress so far. Stay tuned for Part 2 of the “Ext JS from Scratch” series, coming soon!
