Data visualization capabilities play a key role in modern apps. D3.js is a powerful visualization component library and can be easily integrated in Ext JS apps.
D3.js provides different component types:
- Hierarchical Components
- Heatmap Component
- Custom Components
In this post, we’ll look at integrating the “d3-sunburst” and “d3-pack” component in your Ext JS app. View additional documentation on using D3 in Ext JS
Table of Contents
Sunburst
The ‘d3-sunburst‘ component visualizes tree nodes as donut sectors with the root circle in the center.
1. Get hierarchical data
text: '/usr', children:[{ text: '/X11R6' },{ text: '/bin' },{ text: '/doc' },{ text: '/etc' },{ text: '/games' },{ text: '/include' },{ text: '/info' },{ text: '/lib' },{ text: '/local' },{ text: '/man' },{ text: '/sbin' },{ text: '/share' },{ text: '/spool' },{ text: '/src' }]
2. Define sunburst configuration:
{ xtype: 'd3-sunburst', padding: 20, store: store } >/pre> <strong>3. Add sunburst customization like tooltip or transition:</strong> <pre lang="javascript"> tooltip: { renderer: function (component, tooltip, node) { var record = node.data, n = record.childNodes.length; tooltip.setHtml(n + ' folder' + (n === 1 ? '' : 's') + ' inside.'); } }, transitions: { select: false }, listeners: { selectionchange: function(sunburst, node) { sunburst.zoomInNode(node); } }, expandEventName: false
Fiddle:
Pack

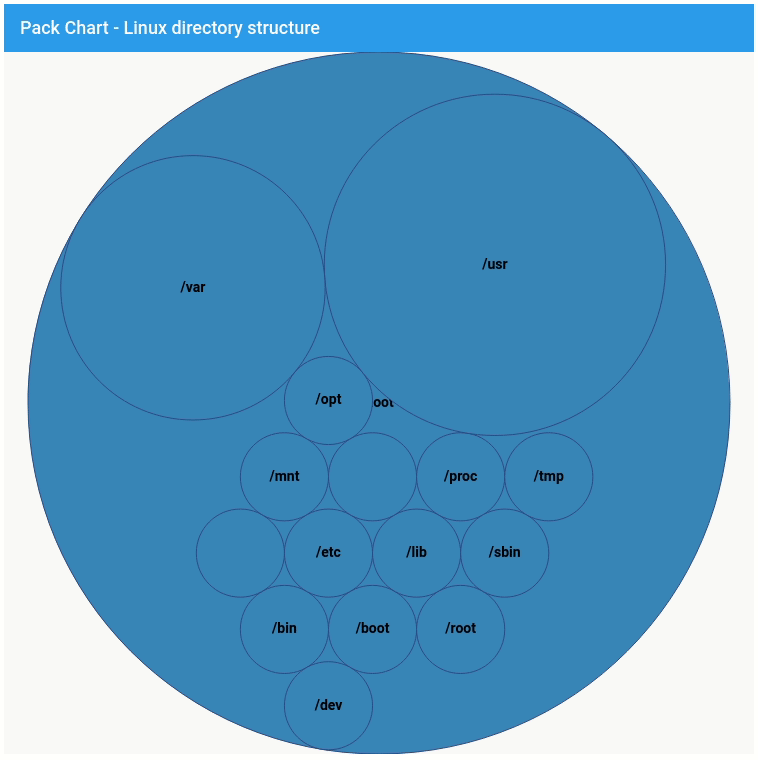

The ‘d3-pack’ component uses D3’s Pack Layout to visualize hierarchical data as an enclosure diagram.
1. Get hierarchical data:
text: '/usr', children:[{ text: '/X11R6' },{ text: '/bin' },{ text: '/doc' },{ text: '/etc' },{ text: '/games' },{ text: '/include' },{ text: '/info' },{ text: '/lib' },{ text: '/local' },{ text: '/man' },{ text: '/sbin' },{ text: '/share' },{ text: '/spool' },{ text: '/src' }]
2. Define pack configuration:
{ xtype: 'd3-pack', store: store }
3. Add pack customization like tooltip:
tooltip: { renderer: function (component, tooltip, node) { var record = node.data, n = record.childNodes.length, html = '<span style="font-weight: bold">' + record.get('text') + '</span><br>'; html += n + ' folder' + (n === 1 ? '' : 's') + ' inside.'; tooltip.setHtml(html); } }
Fiddle:
