Using the Ext JS D3 Adapter to Create a Custom Data Visualization

September 6, 2017 260 Views

The Ext JS D3 Heat Map Adapter provides you with incredible built-in data visualization components such as heatmap, treemap, sunburst, and more, as well as complete flexibility to create your own visualizations. You can pick any visualization from the D3.js gallery and create an Ext JS component based on it.

In this article, I’ll introduce a few concepts, components, and utility classes, as well as walk you through the steps of creating your own data visualization UI components such as heat maps.

Sencha App Camps – Register Today

To learn more, please register for our Data Visualization App Camps taking place in London on October 4th and Munich on October 12th.

What are the Steps to Create a Custom Visualization?

  • Choose the base visualization
  • Choose an engine: SVG or Canvas
  • Define data requirements
  • Define axes
  • Define legend requirements
  • Define tooltip requirements

Now, I’ll go through each step in more detail. I’ll use the following example which is a visualization showing average income in different states.

Is there an Example Visualization?

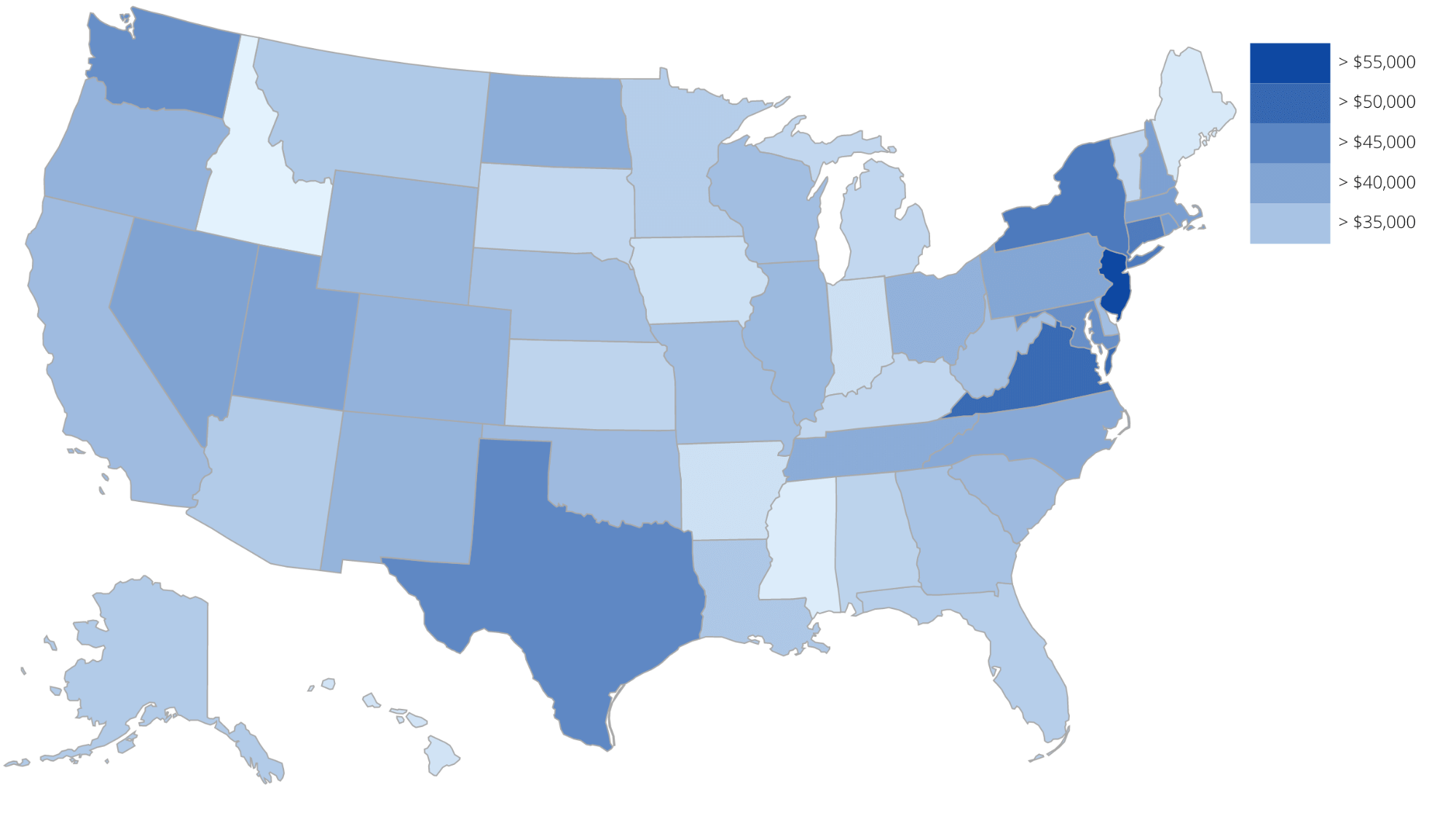

Ext JS Custom Data Visualization - Example

Step 1: Base Visualization

First, I suggest you find a d3.js visualization that comes close to meeting your requirements. You could use one of the samples from the d3.js gallery or any other resource. This visualization is the base for my example:

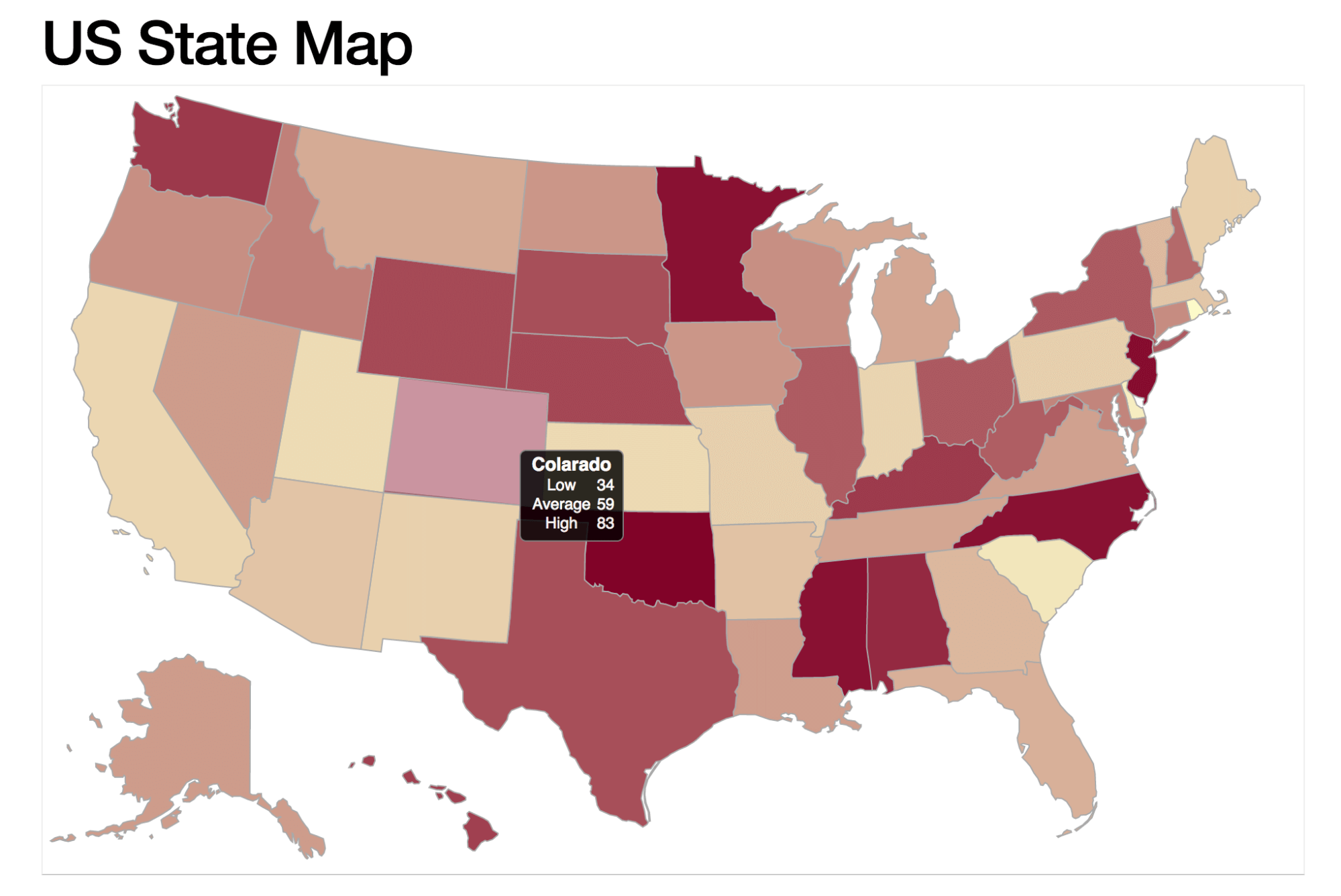

Ext JS Custom Data Visualization - Base Visualization

Get US State Map

Step 2: Visualization Engine – SVG or Canvas

Scalable Vector Graphics (SVG) is an XML-based vector image format for two-dimensional graphics with support for interactivity and animation.

The Canvas element is part of HTML5 and allows for dynamic, scriptable rendering of 2D shapes and bitmap images.

The Ext JS D3 Adapter supports both engines, so you’re free to choose. Here are some things to consider when making your choice.


All major modern web browsers – including Mozilla Firefox, Internet Explorer, Google Chrome, Opera, Safari, and Microsoft Edge – have at least some degree of SVG rendering support.


  • Event handling: every item is a separate DOM element. The SVG enables event handlers to be associated with objects, so a rectangle responds to an onClick event.
  • Easy modification: every item can be modified independently.

Memory usage: every item is a separate DOM element, so if you have a lot of elements in your visualization, it could be a bottleneck and impact performance.


The Canvas element is supported by the current versions of Mozilla Firefox, Google Chrome, Internet Explorer, Safari, Konqueror and Opera.


  • Memory usage: Canvas is a single DOM object, so the page DOM model size remains stable when you add new elements to the Canvas.


  • Event handling: To get event handling with Canvas, you have to manually match the coordinates of the mouse click with the coordinates of the drawn rectangle to determine whether it was clicked.
  • Any modification requires a full redraw of the Canvas.

My Choice

For my visualization component, I’ve chosen an SVG engine for the following reasons:

  • The item count isn’t very big: I have only 50 states
  • Easy event handling
  • Easy modification

Step 3: Data Definition

To build my visualization, I need flat data that includes average income value for every state. I can use class because my model only has to include two fields:

  • The “state” field will store the US state
  • The “value” field will store the average income value

Step 4: Axes Definition

For my visualization, I use two axes:

  • The mapAxis uses the “state” field to point to the state on the map
  • The colorAxis uses the “value” field to illustrate the average income with the specific color

Step 5: Legend Definition

My legend includes:

  • Color ticks
  • Associated values with formatting

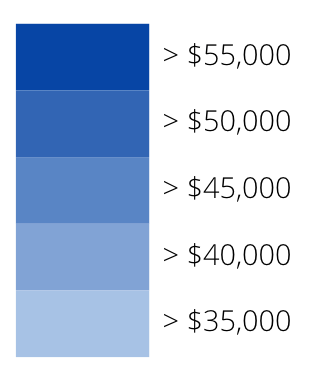

Ext JS Custom Data Visualization - Legend Definition

Step 6: Tooltip Definition

The tooltip template looks like this:

[“state” field’s value]: $[”value” field’s value]

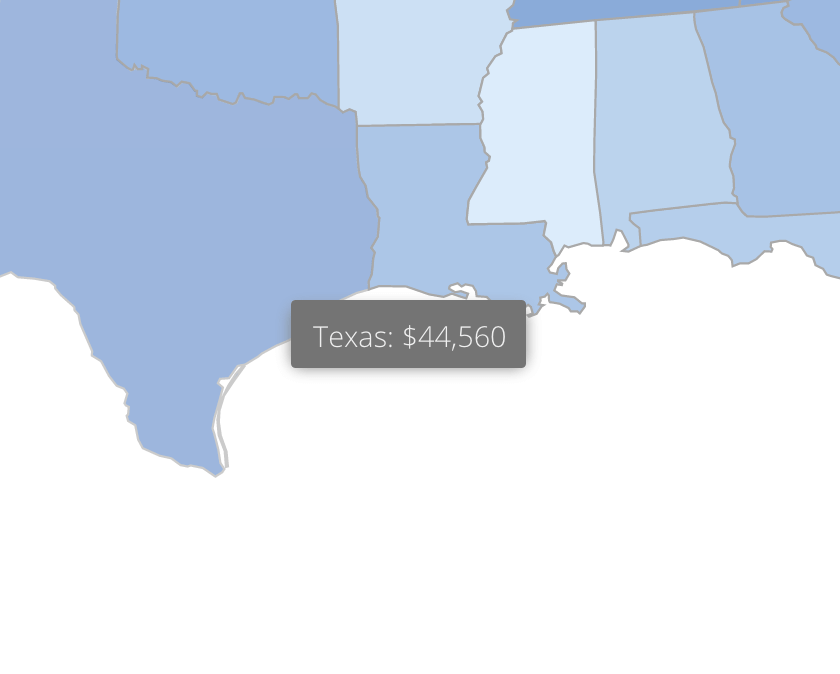

Ext JS Custom Data Visualization - Tooltip Definition

What are the Visualization Base Classes?

Every concept that I discussed in the steps above – Graphical Engine, Axis, Legend, and Tooltip – has a separate class in Ext JS that you can easily use when building your own custom visualization.

What are the Component Base Classes?


xtype: d3
The base class of every SVG D3 Component can also be used standalone. I won’t use the base class for the US states visualization.

The class has two important events:

  • scenesetup – fires once after the scene has been created
  • sceneresize – fires after scene size has changed

Both events could be used to draw the visualization.


xtype: d3-canvas
The base class of every Canvas D3 Component can also be used standalone. I will not use this class in my visualization component.

Store Base Classes

  • The is used to store flat data that will be displayed in the visualization. This is the base class for the store that I’ll use in my visualization component.
  • The is used to store hierarchical data that will be displayed in the visualization. I won’t be using this class in my visualization component.

Axis Base Classes

The Ext.d3.axis.Axis class is used to display reference lines for D3 scales. The Ext.d3.axis.Axis component wraps it with an added ability to display an axis title in the user-specified position.
Ext.d3.axis.Data is a sub-class of Ext.d3.axis.Axis that holds extra information needed for use with stores. This will be the base class for my mapAxis.
The Ext.d3.axis.Color maps data values to colors. This will be the base class for my colorAxis.

Legend Base Class

The Ext.d3.legend.Color is designed to work with the Ext.d3.axis.Color axis and present the range of possible values in various ways. This will be the base class for my legend.

Tooltip Base Class

The ToolTip mixin is used to add Ext.tip.ToolTip support to various D3 components. This will be the base class for my tooltip.

Ready to get started with the next steps?

To build a custom visualization component, I need to extend the base visualization class by following these steps: bind the store with the data to visualize, implement handlers for scenesetup and sceneresize events that will draw and resize the d3.js visualization, and add instances of Axis, Legend, and Tooltip classes to draw axes, legend, and tooltips.

To learn the step-by-step process of combining these classes together to build a great looking custom data visualization, please register for our Data Visualization App Camps taking place in London on October 4th and Munich on October 12th. At the App Camp, I’ll also cover advanced customization of built-in d3.js visualization components and data aggregation with Pivot Grids.
